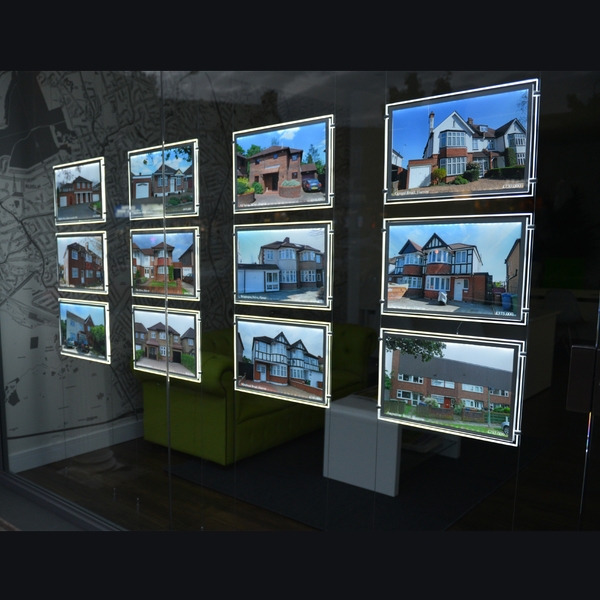

Real Estate LED Window Display Light Pocket
Brief:
Light Panel: Better Acrylic Panel
LED Lights: 2835 led lights
LED IC Chip: EPISTAR
Input Power: 110-240V AC
Output Power: 12V DC
Certificates: CE, RoHS,
Item Thickness: 11mm
Available Size: A0, A1, A2, A3, A4
OEM Order Welcome
Tags:
Next: Mini Rechargeable LED Moving Sign Inches
Previous: Counter LED Acrylic Frame Inches
Light Panel: Better Acrylic Panel
LED Lights: 2835 led lights
LED IC Chip: EPISTAR
Input Power: 110-240V AC
Output Power: 12V DC
Certificates: CE, RoHS,
Item Thickness: 11mm
Available Size: A0, A1, A2, A3, A4
OEM Order Welcome
Tags:
Next: Mini Rechargeable LED Moving Sign Inches
Previous: Counter LED Acrylic Frame Inches
| Item | Description |
| Code | CI-CLB(LED Crystal Light Box) |
| Sided | Single sided/Double sided (can be customized) |
| Thickness | 8mm/0.32 inch (different type the thickness is different) |
| Clear Frame Width | 20mm/0.79 inch (can be customized) |
| Available size | A0, A1, A2, A3, A4 (can be customized) |
| Max size | 1220x2440mm/48x96 inch |
| Standoffs | 4pcs stainless standoffs |
| Silkscreen | Silver, Black |
| Fixture Connections | Integral male/female connectors, 3 feet/91cm from the light box to the transformer, 4.9 feet/150cm from the adapter to plug |
| Operating Temperature | -4°F~122°F(-20°C~50°C) |
| Humidity | 0-95%, non-condensing |
| Environment | Dry Location, IP20 |
| LED | SMD LED 2835, 3014, 5050 |
| Transformer | DC-12V, with CE, RoHS, UL certificates |
| Lumens+ | 246(6000K), 222(7200K) |
| Color Temperature | 6000K(+375/-300) to 7200K(+400/-500), can be customized |
| Brightness | 2000-3000 lux, can be customized |
| Lumen Maintenance | 27,000 hours L70≥25°C,40,000 hours L90≥25°C |
| Power Consumption | 12W maximum at full output, steady state |
| Voltage | Output Voltage: 12V DC; Input Voltage: 110/120/230/240V AC |
| Certificates | CE, RoHS, UL |
| Spec Details of CI LED Crystal Light Box/Pockets Single Sided | |||||||
| Model | Poster Size | Visual Size | Frame Size | Thickness | Light Source | Watts | Power Supply |
| CI-CLBA4-S | 297x210mm | 287x200mm | 341x254mm | 8mm | SMD2835 | 5W | AC100-240V |
| CI-CLBA3-S | 420x297mm | 410x287mm | 464x341mm | 8mm | SMD2835 | 7W | AC100-240V |
| CI-CLBA2-S | 594x420mm | 584x410mm | 638x464mm | 9mm | SMD2835 | 14W | AC100-240V |
| CI-CLBA1-S | 841x594mm | 825x576mm | 887x638mm | 9mm | SMD2835 | 19W | AC100-240V |
| Spec Details of CI Crystal Light Box/Pockets Double Sided | |||||||
| Model | Poster Size | Visual Size | Frame Size | Thickness | Light Source | Watts | Power Supply |
| CI-CLBA4-D | 297x210mm | 287x200mm | 341x254mm | 11mm | SMD2835 | 5W | AC100-240V |
| CI-CLBA3-D | 420x297mm | 410x287mm | 464x341mm | 11mm | SMD2835 | 7W | AC100-240V |
| CI-CLBA2-D | 594x420mm | 584x410mm | 638x464mm | 11mm | SMD2835 | 14W | AC100-240V |
| CI-CLBA1-D | 841x594mm | 825x576mm | 887x638mm | 11mm | SMD2835 | 19W | AC100-240V |
